Water heater installation in Morton Grove, IL is the planned work of setting a new heater, connecting its water, fuel and venting, and passing the village permit process. A good installation starts well before the tank arrives. It begins with the size of your household, the fuel you have and the room the heater will sit in. This page walks through each decision in the order the plumber makes it.
Signs it is time to plan an installation
- A tank that is past its first decade, even if it still works
- Rusty hot water, or a base that shows rust streaks
- Repair bills that keep stacking up on the same heater
- A remodel that adds a bathroom or a larger tub
- A move from a tank to a tankless or hybrid unit
- A heater in a spot that is hard to reach or poorly vented
Sizing the heater to the household
An undersized heater runs out of hot water, and an oversized one wastes fuel keeping extra water warm. The plumber sizes a tank by how many people live in the house and how much hot water they use at the same time. Tankless units are sized by flow rate and temperature rise, which depends on how cold the incoming water is in winter.
| Situation | Sizing factor | What the plumber checks |
|---|---|---|
| Small household, one bathroom | Peak morning use | Tank size or output that covers one shower plus a tap |
| Family with several bathrooms | Overlap of showers and laundry | First-hour output, not only tank volume |
| New soaking tub or body sprays | Fill volume | Whether the existing tank can refill in time |
| Switch to tankless | Flow rate and winter water temperature | Gas line capacity and vent run |
| Small space or closet | Physical footprint | Door clearance, height and service access |
Give the plumber an honest picture of your busiest hour. Sizing is a conversation, and the answer affects every month of operation afterward. For a failed tank, see water heater replacement, which handles the urgent version of this work.
Venting and combustion air
A gas-fired heater must carry exhaust out of the building and bring in enough air to burn cleanly. Older homes with an atmospheric vent rely on the chimney drawing correctly. High-efficiency models vent through plastic pipe to the side wall, and that changes where the heater can sit.
Poor venting is the most serious installation fault, because exhaust can spill back into the living space. Morton Grove has adopted the 2018 International Mechanical Code and Fuel Gas Code with local amendments, which govern vent sizing and clearances. The plumber measures the vent run, checks the connector for slope and sealing, and confirms there is enough air in the room.
The gas line, the shutoff and the sediment trap
Gas arrives in Morton Grove through Nicor Gas, and the pipe feeding your heater has to be big enough for the new burner's input rating. A bigger heater, or one that now shares the line with a furnace and a range, may need larger pipe. The plumber measures the run and adds up the connected appliances before ordering anything.
Three parts are worth looking for on any gas job. A manual shutoff valve within reach of the heater, a drip leg that catches debris before it reaches the gas control, and a flexible connector in good condition. A gas odor at any point after the install means everyone steps outside, and 911 plus the emergency line on your gas statement come next.
Expansion tank, relief valve and discharge pipe
Water expands when it heats. In a closed plumbing system, with a backflow device or pressure-reducing valve near the meter, that extra volume has nowhere to go, and pressure climbs. An expansion tank on the cold line absorbs it, and many plumbers add one on any closed system.
The temperature and pressure relief valve is the last safety device. Its discharge pipe must run downward to a safe spot and must never be capped or plumbed into a trap. A drain pan with a pipe to a floor drain adds protection when the heater sits above finished space.
Planning a heater upgrade?
Call to talk through sizing and venting.
Codes and the permit in Morton Grove
Morton Grove follows the Illinois 2014 Plumbing Code, adjusted by local amendments, and the 2018 International Residential, Building, Mechanical and Fuel Gas Codes. Between them, these rules cover water connections, venting, gas piping and clearances around a new heater. Water heaters are on the permit list, and the paperwork can be filed through the village website.
That matters to you for a practical reason. The permit and inspection exist so that a second licensed person checks the work that handles gas, hot water and exhaust. Ask the plumber who is pulling the permit, and ask Morton Grove Building and Inspectional Services to confirm what your project needs.
What installation day looks like
A planned installation, start to finish
- 1Walk the siteThe plumber checks the space, the vent path, the gas pipe or circuit and the water shutoffs.
- 2Confirm the planSize, fuel type, venting and permit details are agreed before work starts, along with a clear price.
- 3Drain and removeIf a heater is being replaced, it is drained, disconnected and carried out.

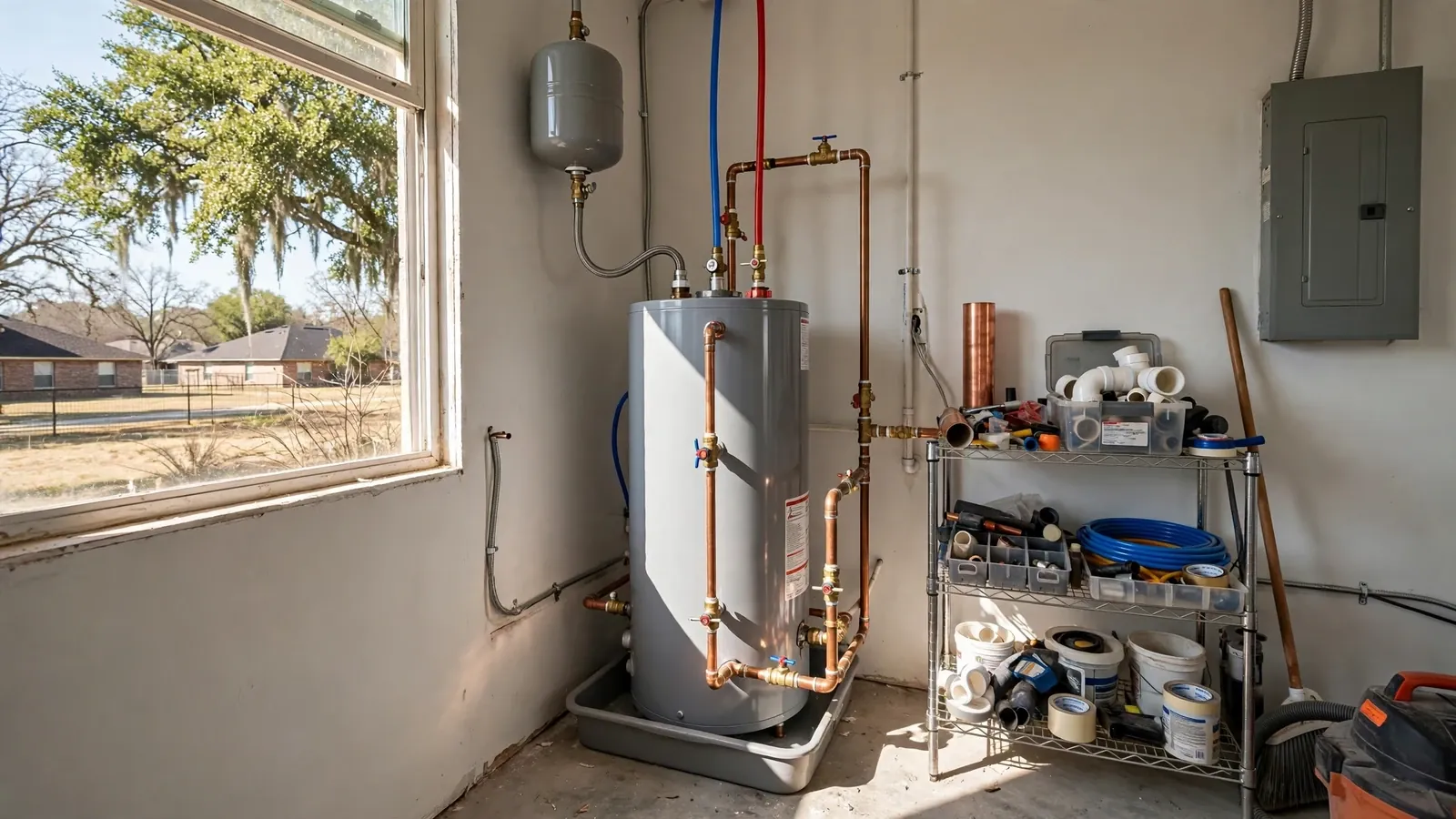

- 4Set and connectThe new heater is leveled, then connected to water, fuel, vent and the discharge pipe, with an expansion tank where needed.
- 5Test and explainThe tank is filled and purged, the burner or elements are tested, joints are checked for leaks and you are shown the shutoff valves and thermostat.
What moves the price of an installation
What changes the cost of an installation
- Heater type and size: Tank, hybrid and tankless units are priced very differently, and a larger unit costs more.
- Venting changes: A new vent route or a change in vent type can add parts and labor.
- Gas or electrical work: A larger gas pipe or a new circuit adds time.
- Required accessories: Expansion tank, drain pan, shutoff valves and a new discharge pipe may be needed to meet code.
- Permit and site conditions: Tight spaces, long carry-outs and permit steps all add time.
A standard homeowners policy rarely helps with a planned upgrade, because it responds to sudden damage and skips routine replacement. Ask your insurer whether newer equipment earns a discount. Also request the clear price in writing ahead of the first day on site.
Want your real number? Call (847) 281-8626.
Morton Grove note
Because an install is planned, you can build the village's permit step into your calendar. Water heater permits are taken online, and reviews usually wrap up inside 15 business days, so ask whether the permit is already filed before you pick a date. Companies working within village limits also hold a village contractor licence tied to insurance and a bond, and any installer should be willing to confirm it.
Source type: Morton Grove permit application guidance and contractor licence rules
Related work and service area
A new heater often sits beside other work. If you are changing fixtures or adding bathrooms, plumbing installation covers the wider scope. If you are weighing a unit that heats water on demand, read about a tankless water heater before deciding. Installs are also scheduled in Lincolnwood and the other nearby towns.
Frequently asked questions
A like-for-like tank swap often takes part of a day. Changing fuel type, rerouting a vent or upgrading a gas line takes longer. The plumber gives you a realistic plan after the site walk.
Yes. Water heater work is on the village permit list, with applications accepted online, and a review commonly finishes within 15 business days. Schedule the install around that window.
Many homes do. If your system has a backflow device or a pressure-reducing valve near the meter, thermal expansion has nowhere to go, and an expansion tank protects the fixtures and the heater.
It depends on how many people use hot water at the same time, plus any large tubs. The plumber looks at your busiest hour and sizes from there.
In many houses it can move. Shifting plumbing fixtures to a new spot is permit work in the village, and the new location needs a vent path, a gas or power supply and a drain within reach.
Yes. Dispatch runs around the clock. If a connection leaks or the heater will not light after the work, call any hour and a plumber is sent as soon as the schedule allows, with same-day appointments when available.
